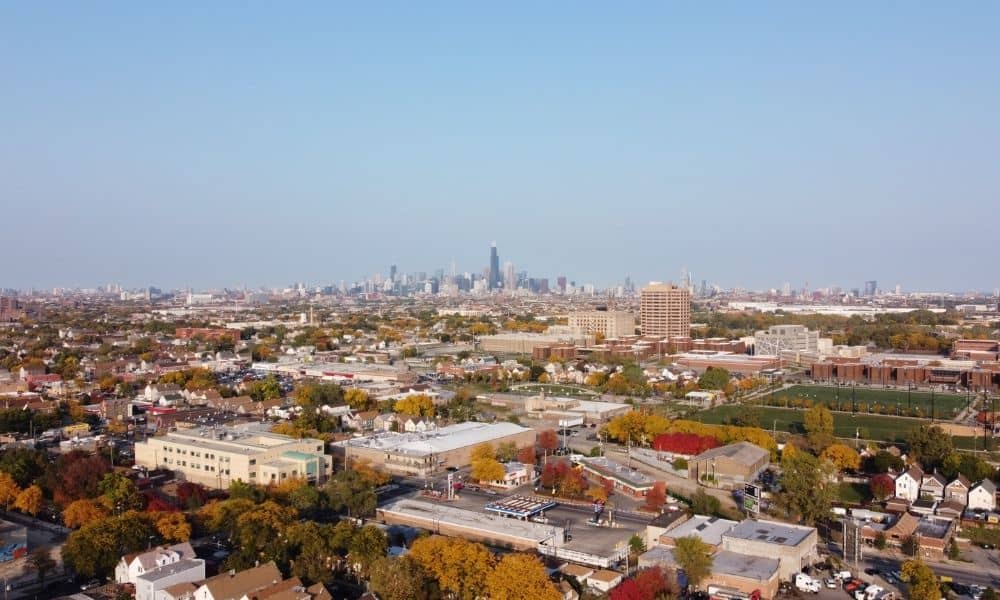

If you own a lot and want to split it into two or more lots, the first question isn’t about paperwork. It’s about whether the land can even support a split. A subdivision survey answers that question. It shows where your real boundaries sit. It shows if your planned lots meet basic size rules. And it shows what a surveyor needs to write down before the city will look at your plan.
Many lots make this tricky. Lots in older neighborhoods were often mapped out decades ago. Some have narrow frontages. Some share walls with the house next door. Some use alley access that doesn’t match today’s zoning rules. Before you call an architect or talk to a buyer about a second lot, it helps to know what a subdivision survey covers and why the order of steps matters.
What a Subdivision Survey Establishes
A subdivision survey finds the edges of your current lot. Then it shows how that lot can split into new, separate lots that can be legally recorded. It mixes a boundary survey of the whole property with a plan for the new lots. That plan has to meet the city’s rules for zoning and recording.
This is not the same as a plain boundary survey. A boundary survey just shows where your lot lines are right now. A subdivision survey goes further. It has to prove that each new lot can stand on its own, with clear size, frontage, and access, before the city will even review a plat.
For a lot, this often means checking things you can’t see on an old plat map. Does each new lot have legal access to a street or alley? Are there shared driveways, shared walls, or roof overhangs that cross where a new line would go? A surveyor who checks these things early can save you from a costly redesign later.
Why Existing Parcel Records Come First
Before a surveyor can draw new lot lines, they need to know what your lot actually is, both on paper and in the real world. That starts with a title search and a look at the recorded plat or deed. Then comes a field survey to find monuments, fences, and other signs of the real boundary.
This step matters because paper records and real conditions don’t always match. A fence might sit a few feet off the true line. An old plat might point to a monument that’s long gone. Easements or shared wall agreements from years ago can still affect what you’re allowed to do with the land today.
If you skip this step and jump right to drawing new lines, your plan might look fine on paper but fall apart once the surveyor checks the real records and field conditions. Confirming the current lot first gives everyone a solid starting point.
How Proposed Lot Lines Shape the Survey
Once your current boundary is confirmed, the surveyor works with you, and often an architect or planner, to figure out where the new lines should go. This is not just drawing a line down the middle of the yard.
Each new lot needs enough land area and street frontage to meet the rules for its zoning district. It needs a way to reach utilities without conflicting with the other new lot. And it needs to work around any buildings already there, since a line that cuts through a garage or a shared foundation usually won’t work.
For narrow lots, this often means trying a few different layouts before finding one that works for both your goals and the zoning rules. A surveyor can usually spot these problems early. That’s much cheaper than finding out after a plat has already been drawn up.
Coordinating the Plat With Review Requirements
Once the new lot lines are set, the surveyor draws a plat of subdivision. This plat shows the new lots, their sizes, and any easements or rights of way that apply. That plat then goes through the city’s review process before it can be recorded.
In Chicago, this usually means review by the city’s planning and zoning departments to check that the new lots meet the rules for that zoning district. Some properties need extra review too, depending on their location or planned use. This can include checks on alley access, easement dedications, or public way rules that don’t come up on every project.
Review times and what you need to submit can change based on the ward, the zoning type, and whether the property has any open permits or violations. It’s worth checking current rules with the city and your surveyor early. Don’t assume the process will move the same way it did for a similar split a few years back.
What Happens Before New Parcels Are Recorded
A subdivision survey and plat don’t create new legal lots on their own. Your new lots only become official once the plat gets approved by the right city departments and gets recorded with the Cook County Recorder of Deeds. Until that recording happens, your property stays one legal lot, even if a survey is done and a plat is drawn.
This trips up a lot of property owners. Some think that once a surveyor stakes new lines in the field, the split is done. In truth, the survey and plat are just the paperwork that backs up the split. Recording is the step that actually creates separate lots you can sell, finance, or build on.
Before recording, it helps to tell any lenders, title companies, or buyers involved in a sale about your timeline. A pending subdivision can affect financing or closing dates. Loop those parties in once your plat is close to approval, not after recording is already done.
